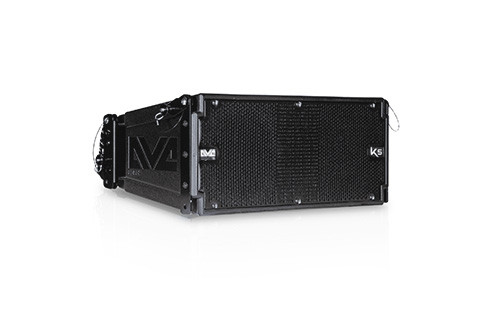

DB-DVA K5 - 3-Way Active Line Array Speaker

DB-DVA K5 - 3-Way Active Line Array Speaker

dB Technologies
SKU:
DVA K5
$1,799.00
$3,328.00
(You save $1,529.00 )
Current Stock:
Description

DB- DVA K5 - 3-Way Active Line Array Speaker

The DVA K5 line array module comprises two 1,4” drivers, a 6” neodymium midrange and a 8” neodymium woofer.

Furthermore, an advanced DSP user interface allows an extremely precise system tuning: a double rotary encoder provides a separate tuning for LF correction (coupling) and MF/HF correction (high-angle midrange loss and air absorption compensation due to throw distance).

The module’s electronics and components are housed in a sturdy polypropylene box, reinforced with an internal anti-vibration metal structure which drastically reduces any resonance, allowing the cabinet to achieve an excellent acoustic response.

The unique design, the selected components and a state of the art amplifying technology come together to deliver an exceptional weight-performance ratio: each system weights 31,31 lbs (14,2 Kg). Moreover, DVA K5 comes with a freshly designed frontal grille and an integrated raincover.

  • 3-WAY ACTIVE LINE ARRAY MODULE

  • 500 W RMS DIGIPRO G3 AMP TECHNOLOGY

  • 129 dB MAX SPL

  • FREQUENCY RESPONSE [+/- 3 dB]: 80 - 19.000 Hz

  • HF: 2x 1", 1.4” v.c.

  • MF: 1x 6.5", 2" v.c. - NEODYMIUM

  • LF: 1x 8", 2.5” v.c. - NEODYMIUM

Technical Data

3-Way Active Line Array Module

Acoustical data
Frequency Response [+/- 3dB]
70 - 19,000 Hz
Max SPL
One Unit: 129 dB
HF
2x1 "


Voice Coil HF
1.4 "
MF
1x 6.5 "
Type MF
Neodymium
Voice Coil MF
2 "
LF
1x8 "
Voice Coil LF
2.5 "
Type LF
Neodymium
Directivity (HxV)
100x15° Single unit

Amplifier
Amp Technology
Digipro® G3
Amp Class
Class D
RMS Power
500 W
Peak Power
1000 W
Cooling
Convection
Power Supply
500 W SMPS with Auto Range PSU
Processor
Controller
DSP 56 Bit
AD/DA Converter
24 bit/48 KHz
Limiter
Dual Active Multiband RMS, Peak, Thermal
Crossover Frequency MF-HF
1800 Hz
Slope MF-HF
24 dB/Octave
Crossover Frequencies LF-MF
340 Hz
Slope LF-MF
24 dB/Octave

Input
Signal Input
1x XLR Balanced
Signal Output
1x XLR Balanced
Power Socket
1x PowerCON In

1x PowerCON Out
Controls
1 x Input Sensitivity Rotary Switch

1 x DSP Rotary Encoder (LF Correction)

1 x DSP Rotary Encoder (MF-HF Correction)



Mechanics
Housing
Polypropylene PP metal reinforced
Rigging Points
Integrated rigging hardware
Width
580 mm (22.83 in)
Height
240 mm (9.44 in)
Depth
327 mm (12.87 in)
Weight
14.7 kg (32.4 lbs)
