MiPro ACT-32T-5NC - UHF Bodypack Transmitter

MiPro ACT-32T-5NC - UHF Bodypack Transmitter

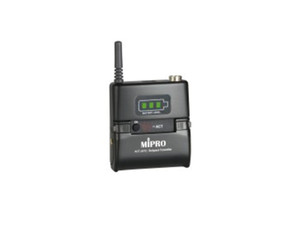

The new Mipro ACT-32T bodypack transmitter is built on the backbone of three generations of ACT product design and experience. This transmitter features improved RF circuitry, a durable, miniature, lightweight housing, premium low power consumption characteristics, LCD display and silent on/off switch. The Mipro ACT-32T is innovative, reliable and offers the premium performance needed by today’s audio professionals.

Features

• Lightweight, compact size with sturdy plastic housing
• Front panel features mute switch, mini-XLR connector and antenna
• Backlit LCD displays various parameters and status
• Innovative battery cover allows easy access to operate buttons and prevents accidental operation
• Mute button with remote-control jack for easy activation of mute function
• Stable PLL circuits. Automatically synchronized with the receiver’s frequency by MIPRO’s patented ACT™ function
• Can directly match to high-low input impedance for microphone or guitar without switching
• Mini-XLR input with secure screw lock connector for lavaliere / headworn mics and guitar
• Adjustable belt clip allows wearing transmitter in up or down position.
• High-efficiency circuitry design provides 12~14 hours of operation from 2 AA batteries (depending on the battery quality).

Specifications

• Frequency Range:  UHF 480 – 934 MHz
• Bandwidth:  24 MHz
• Oscillation Mode:  PLL Synthesized
• Channel Set-Up:  ACT Sync
• RF Output Power:  10 mW / 50 mW (switchable)
• Deviation:  < ± 40 kHz
• Spurious Emissions:  ≦ -55 dBc
• LCD Display:  Group, Channel, Frequency, AF gain, Frequency band, RF power, Mute mode, Lock status, Battery status and error codes
• Max. Input Level:  0 dBV
• Mute Connector:  Optional MJ-70 remote mute switch
• Battery Type: 2 AA alkaline
• Operating Time:  Min. 12 hours
• Current Consumption:  High Power: approx. 161 mA ; Low Power: approx. 120 mA
• Dimensions (W × H × D):  63 × 82 × 22 mm / 2.5 × 3.2 × 0.9 ”
• Net Weight:  Approx. 83 g / 2.9 oz
