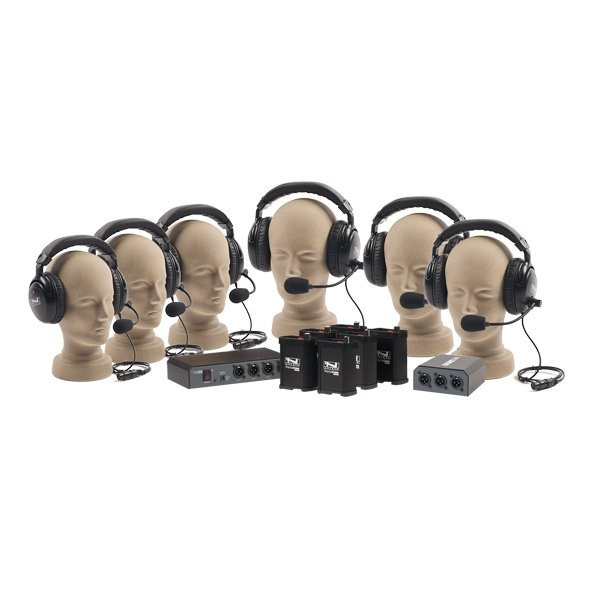

Anchor Audio COM-60FC - Portacom Wired Intercom System (No Cables)
Anchor Audio
$3,945.00
Write a Review
Anchor Audio
Anchor Audio COM-60FC - Portacom Wired Intercom System (No Cables)
Anchor Audio COM-60FC - Portacom Wired Intercom System (No Cables)
This PortaCom wired intercom package (COM-60FC) is for 6 users and does not include cables. It comes with the world's easiest, most durable wired intercom which is flexible and high performance. It includes the power console, six belt packs, and six lightweight single-muff headsets. It provides two channels without sacrificing power or quality, and it is expandable, portable, and rack mountable. The package comes in a sturdy cardboard carrying case. It is AC operable, and up to 20 headsets can be used at once with the system. It is ideal for theater, local cable studios, churches, or high school football coaches.
Optional: Add seven EX-50M cables to create the COM-60FC/C package.
Features
- AC operable
- Easy to set up and operate
- Two-channel wired full-duplex intercom
- Supports up to 20 headsets
- Includes comfortable single-muff headsets
- Compatible with standard double-shielded microphone cable
- Can use standard 3-pin XLR microphone cables
- Portable or rackmountable
- Durable lightweight metal belt packs
- High performance, cost-effective design
Specifications
| COM-60FC System | |
|---|---|
| Operating Distance | Up to 2,500 ft (total cable length) |
| Normal Line Level | -15 dBV |
| Signal-to-Noise Ratio | -65 dB |
| Distortion | < 0.5% |
| Connecting Cables | Standard 1-pair shielded mic cable with 3-pin XLR (heavy-duty cable recommended for runs over 250 ft) |
| Compatibility | Generally compatible with industry standard system (call for info) |
| BP-2000 Belt Pack | |
| Input Line Connector | 3-pin XLR – female |
| Headset Connector | 4-pin XLR – male |
| Bridging Impedance | 10 k Ohm min |
| DC Current Reqs. | 20mA max |
| Dimensions (H x W x D) | 3.8" (96.5 mm) x 2.75" (69.85 mm) x 1.25" (31.75 mm) |
| Weight | 0.40 oz (0.0113 kg) |
| PC-2000 2-Channel Power Console | |
| Output Connectors | 3-pin XLR – 4 male |
| Voltage Output | 22 VDC to belt packs |
| Max. Current Capacity | 400mA |
| Max. Belt Packs | 20 BP-2000 belt packs |
| Input Power Reqs. | 24VAC, 50/60Hz, 750mA; 30 – 40VDC, 500mA |
| AC Power Adapter | Anchor model AC-20 |
| Input Voltage | 120VAC, 60Hz |
| Output Voltage/Current | 24VAC @ 750mA |
| Dimensions (H x W x D) | 1.75" (45 mm) x 8.5" (216 mm) x 4.5" (114 mm) |
| Weight | 57.6 oz (1.63 kg) |
| B3-2000 - Branch Box | |
| Connectors (3-pin XLR) | Input – 1 female / Output – 3 male |
| Dimensions (H x W x D) | 1.9" (48 mm) x 4.1" (105 mm) x 4.25" (108 mm) |
| Weight | 19.2 oz (0.5 kg) |
What's Include:
-
- (6) H-2000S Single Earpiece Headsets
- (6) BP-2000 Belt Packs
- (1) PC-2000 Power Console
- (1) B3-2000 Branch Box
- (1) Sturdy Cardboard Carrying Case
Optional: Add (7) EX-50M 50 ft. cables to equip all six headsets for wired use.
