Description

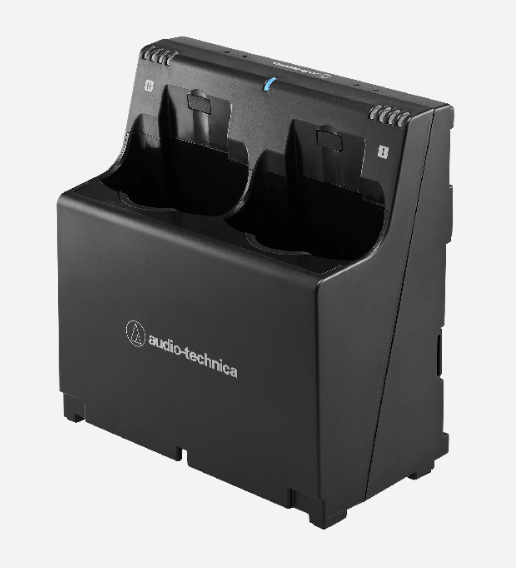

Audio Technica ATW-CHG6 - D50 HH-BP Charger - Two-Bay Handheld and Body-Pack Charging Station

The ATW-CHG6 two-bay charging station is used to charge D50 wireless system body-pack (ATW-DT3201) and handheld (ATW-DT3202) transmitters. The charger can also accept the ATW-CHGA6 single battery charger. Up to four charging stations can be linked with Cat5e cable and powered by a single AC adapter; up to three stations can be linked and powered by PoE+. Indicator lamps on the front of the station allow users to easily monitor charging status and battery level, which can also be viewed in the Wireless Manager software. Transmitter firmware can be updated while transmitters are docked in the charging station.

Charging stations are designed to mount vertically or horizontally on a rack, wall, or other location. Alternatively, up to three ATW-CHG6 charging stations can be installed in a single 2U rack space by using the AT8620 rack-mount tray (sold separately).

Features

  • Two-bay charging station for charging D50 wireless system body-pack and handheld transmitters

  • Up to four charging stations can be linked with Cat5e cable and powered by a single AC adapter; up to three stations can be linked and powered by PoE+

  • Charging status and battery level can be monitored via the station’s LED indicators or in Audio-Technica’s Wireless Manager

  • Two microphone hangers are included for convenient lavalier mic storage

  • Transmitter firmware can be updated while transmitters are docked in the charging station

  • Charging station can be mounted vertically or horizontally

  • Optional AT8620 rack-mount tray allows three ATW-CHG6 charging stations to be mounted in a 2U space

  • Includes: ATW-CHG6 charger, mounting plate, two lavalier mic hangers, link cables to connect multiple chargers

Specifications

Overall System
Operating Frequencies DF2: 470.125 to 607.875 MHz
Modulation Mode Standard: 8-PSK
HD mode: 16QAM
Occupied Bandwidth Standard: 192 kHz
HD mode: 96 kHz
Frequency Response Standard: 20 to 20,000 Hz
HD mode: 20 to 20,000 Hz
Depending on attached microphone element.
Operating Range 100 m (328′)
Open range environment with no interfering signals.
