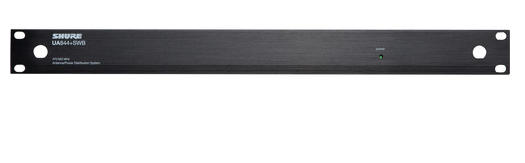

Shure UA844+SWB/LC - Wideband Antenna Distribution System (No Antenna cables)

Shure UA844+SWB/LC - Wideband Antenna Distribution System (No Antenna cables)

Shure
SKU:
UA844+SWB/LC
$600.00
$850.00
(You save $250.00 )
Current Stock:
Description

Shure UA844+SWB/LC - Wideband Antenna Distribution System (No Antenna cables)

The UA844+SWB/LC Wideband Antenna Distribution System & No Antenna Cables from Shure is for the expansion of a Shure wireless microphone system. It can be used to split one pair of antennas to multiple receivers and amplify the RF signal to compensate for the insertion loss.

A single UA844+SWB/LC option comes with four push-on DC cables and no antenna cables. It is recommended for use with the BLXR, SLX, and QLX-D wireless systems. To connect the receiver antenna ports to the UA844+SWB/LC, use the BNC to BNC antenna cables supplied with each BLXR, SLX, and QLX-D wireless system.

In addition, a single UA844+ system can support up to five wireless receivers and a maximum of five UA844+ systems may be used in a two-tiered configuration.

Features:

  • Five-Way RF Signal Output
  • For QLX-D, SLX & BLXR Receivers
  • Front-Mounting Antenna Hardware
  • 4 Power Feeds for 15 VDC Receivers
  • Outputs for Antenna Bias (12 VDC, 300mA)

Includes:

  • Shure UA844+SWB/LC Wideband Antenna Distribution System & No Antenna Cables (470 to 960 MHz)
  • PS45 Power Supply
  • 4 x Non-Locking DC Power Cables
  • 2 x 22" BNC Cables
  • 2 x 6' BNC Cables
  • 2 x Bulkhead Adapters
  • Rackmount Hardware Kit
  • Limited 2-Year Manufacturer Warranty
