Audio Technica ATW-CHG7AD - D50 4B TX Charger w/Power - Four-Bay Desk Stand Transmitter Station with Power

Audio Technica ATW-CHG7AD - D50 4B TX Charger w/Power - Four-Bay Desk Stand Transmitter Station with Power

Audio Technica
SKU:
ATW-CHG7AD
$1,331.00
$1,565.88
(You save $234.88 )
Current Stock:
Description

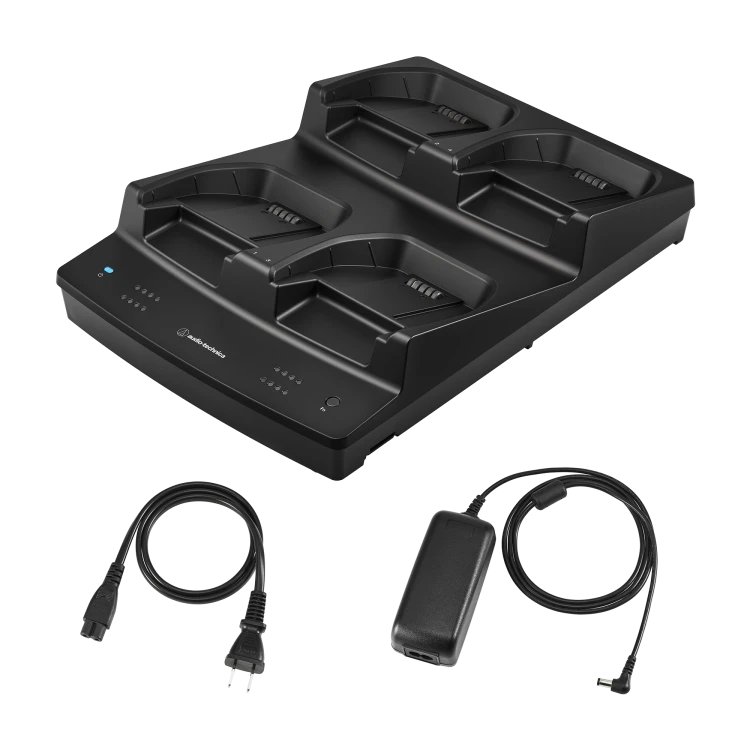

Audio Technica ATW-CHG7AD - D50 4B TX Charger w/Power - Four-Bay Desk Stand Transmitter Station with Power

The ATW-CHG7 four-bay charging station is used to charge D50 wireless system desk stand transmitters (ATW-DT3207). Two charging stations can be linked with Cat5e cable and powered by a single AC adapter. Charging status can be monitored via the station’s indicator lamps and in the Wireless Manager software. Transmitter firmware can be updated while transmitters are docked in the charging station.

Features

  • Four-bay charging station for charging D50 wireless system desk stand transmitters

  • Rapid recharge in as little as two hours

  • Two ATW-CHG7 stations can be linked with Cat5e cable and powered by a single AC adapter (cannot be linked with ATW-CHG6 stations)

  • Charging status and battery level can be monitored via the station’s LED indicators or in Audio-Technica’s Wireless Manager software

  • Transmitter firmware can be updated while transmitters are docked in the charging station

  • Includes: ATW-CHG7 charger, mounting plate, link cables to connect multiple chargers, power supply



Specifications

Overall System

Operating Frequencies DF2: 470.125 to 607.875 MHz
Modulation Mode Standard: 8-PSK
HD mode: 16QAM
Occupied Bandwidth Standard: 192 kHz
HD mode: 96 kHz
Frequency Response Standard: 20 to 20,000 Hz
HD mode: 20 to 20,000 Hz
Depending on attached microphone element.
Operating Range 100 m (328′)
Open range environment with no interfering signals.
Dynamic Range ATW-DT3201 (Mic input): 120 dB, A-weighted, typical
ATW-DT3201 (Inst. input): 109 dB, A-weighted, typical
ATW-DT3202: 120 dB, A-weighted, typical
ATW-DT3207: 120 dB, A-weighted, typical
Total Harmonic Distortion 0.1% or less (at 1 kHz, -20 dBFS)
Maximum Simultaneous Use (recommended) Standard: 17 channels / 6 MHz
Results may vary depending on the radio environment and usage conditions.
Delay Standard: 2.1 ms typ.
HD mode: 3.3 ms typ.
Audio Sampling Rate Standard: 48 kHz
HD mode: 48 kHz
Encryption System AES256
