Audio Technica ATW-DT3207DF2 - D50 Desk Stand TX - Desk Stand Transmitter

Audio Technica ATW-DT3207DF2 - D50 Desk Stand TX - Desk Stand Transmitter

Audio Technica
SKU:
ATW-DT3207DF2
$631.00
$742.35
(You save $111.35 )
Current Stock:
Description

Audio Technica ATW-DT3207DF2 - D50 Desk Stand TX - Desk Stand Transmitter

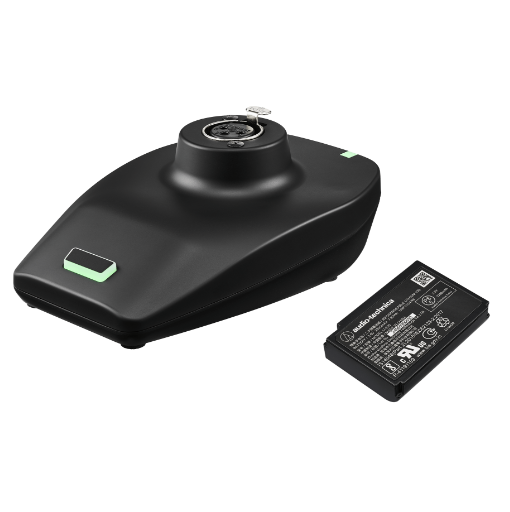

The ATW-DT3207 is a desk stand transmitter for use with the D50 digital UHF wireless system. The transmitter is equipped with a 3-pin XLR-F connector that provides 24V phantom power to compatible quick-mount gooseneck microphones, such as the family of ES925XLR mics (sold separately).

The transmitter’s talk button can be set to three different operation modes (toggle mute on/off, press to mute, press to talk). The unit also features two LED indicators that can be set to illuminate in seven different colors and three different patterns (standard mode and two conference modes).

The ATW-DT3207 is powered by a built-in (replaceable) lithium-ion battery, providing best-in-class battery life. The battery can be charged in the ATW-CHG7 four-bay charging station (sold separately) or via USB-C connection, which allows the transmitter to be used while charging.

Features

  • Desk stand transmitter for the D50 digital UHF wireless system

  • Equipped with a 3-pin XLR-F connector that provides 24V phantom power to compatible quick-mount gooseneck microphones, such as the family of ES925XLR mics (sold separately).

  • Talk button can be set to three different operation modes (toggle mute on/off, press to mute, press to talk)

  • Two LEDs on the transmitter can be set to illuminate in seven different colors and three different patterns (standard mode and two conference modes)

  • Seven different color rings can be attached to the base of a microphone to color code each channel

  • Powered by a custom-designed lithium-ion battery for best-in-class battery life and convenient charging in the ATW-CHG7 four-bay charging station (sold separately) or via USB-C connection

  • Includes: ATW-DT3207 desk stand transmitter, LI-220 rechargeable lithium-ion battery, ATW-TI70 color ring indicator kit

Specs


Operating Frequencies DF2: 470.125 to 607.875 MHz DF3: 470.125 to 693.875 MHz EF3: 580.000 to 693.875 MHz
Modulation Mode Standard: 8-PSK
HD mode: 16QAM
Occupied Bandwidth Standard: 192 kHz
HD mode: 96 kHz
Frequency Response Standard: 20 to 20,000 Hz
HD mode: 20 to 20,000 Hz
Depending on attached microphone element.
Operating Range 100 m (328′)
Open range environment with no interfering signals.
Dynamic Range ATW-DT3201 (Mic input): 120 dB, A-weighted, typical
ATW-DT3201 (Inst. input): 109 dB, A-weighted, typical
ATW-DT3202: 120 dB, A-weighted, typical
ATW-DT3207: 120 dB, A-weighted, typical
Total Harmonic Distortion 0.1% or less (at 1 kHz, -20 dBFS)
Maximum Simultaneous Use (recommended) Standard: 17 channels / 6 MHz, 22 channels / 8 MHz
HD mode: 47 channels / 6 MHz, 63 channels / 8 MHz
Results may vary depending on the radio environment and usage conditions.
Delay Standard: 2.1 ms typ.
HD mode: 3.3 ms typ.
Audio Sampling Rate Standard: 48 kHz
HD mode: 48 kHz
Encryption System AES256
