Audio-Technica ATW-D50-DRX-2B - 2-Channel Body-Pack System

Audio-Technica ATW-D50-DRX-2B - 2-Channel Body-Pack System

Audio Technica
SKU:
ATW-D50-DRX-2B
$2,347.00
$2,761.18
(You save $414.18 )
Current Stock:
Description

Audio-Technica ATW-D50-DRX-2B - 2-Channel Body-Pack System

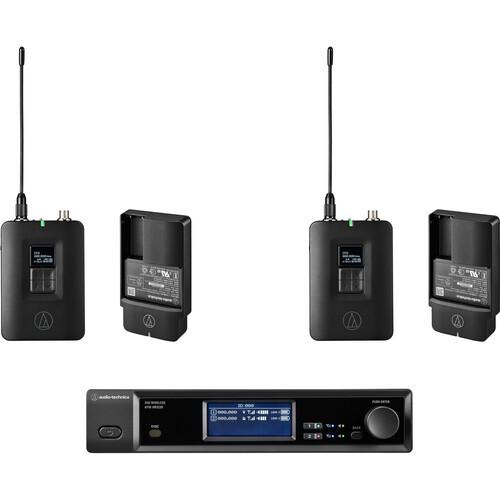

This Audio-Technica D50 2-Person Digital Wireless Bodypack Audio System combines the ATW-DR3220LK dual-channel rackmount receiver with two ATW-DT3201 bodypack transmitters to deliver exceptional sound quality, RF stability, and operational flexibility for professional wireless applications. With Audio-Technica LINK connectivity, switchable RF modes, integrated DSP, and secure AES256 encryption, this UHF wireless package provides reliable performance for presentations, corporate events, installed sound, meeting spaces, houses of worship, and live productions, even in demanding RF situations.

Flexible RF Performance for Challenging Environments

The ATW-DR3220LK receiver operates in either Normal mode using Antenna Combining Diversity or Robust mode using MRC True Diversity for enhanced RF stability. Its tuning bandwidth of up to 138 MHz in the U.S. supports flexible frequency coordination, while HD mode expands channel capacity from 17 to 47 frequencies within a 6 MHz TV channel. Up to four receivers can be LINKed without the need for additional antenna distribution hardware, requiring only a single pair of antennas. Spectrum analysis, IR sync functionality, and Wireless Manager software simplify setup and frequency management in complex wireless environments.


Advanced Control and System Management


Each ATW-DT3201 bodypack transmitter is equipped with a secure cH-style Hirose input connector that can accommodate a wide variety of compatible lavalier and headworn microphones as well as instrument cables for guitar and bass players. The transmitters feature external controls, OLED displays, and mute switches for intuitive operation. They also support Audio-Technica's SideTrack function for switching between multiple outputs, though this feature requires a compatible D50 Dante-enabled, quad-channel receiver and is not available when used with the included dual-channel ATW-DR3220LK LINK receiver. Seven-color LED indicators and matching physical color rings make channel identification simple in multi-user setups.

Onboard DSP in the receiver provides a high-pass filter, 4-band EQ, and compressor for each channel before audio enters the signal chain, reducing the processing load on consoles and external DSP. Spectrum analysis and IR sync functionality simplify setup, while Audio-Technica's Wireless Manager software enables system monitoring, configuration, walk testing, firmware updates, and project management from a connected computer.

Long Battery Life and Reliable Operation

Each ATW-DT3201 transmitter is powered by an included LI-220 rechargeable lithium-ion battery that delivers up to 12 hours of operation at a 10mW output setting. RF output power is adjustable between 1, 10, and 20mW, allowing users to optimize performance for coverage requirements and battery life. Batteries can be charged in the transmitters using the optional ATW-CHG6 charging station or separately using the included ATW-CHGA6 battery chargers. The receiver can be powered by the included AC adapter or via PoE+, with PoE+ serving as a redundant backup power source. The system is TAA compliant, while all-metal transmitter construction and AES256 encryption help ensure dependable and secure operation in professional environments.


Features

  • For Two Presenters or Performers
  • Two Bodypack Transmitters with Chargers
  • cH-Style Hirose 4-Pin Mic Connectors
  • Dual-Channel Half-Rack Receiver
  • 138 MHz US Bandwidth, AES256 Encryption
  • Antenna & MRC Diversity Switching
  • Filter, EQ & Compression, LINK Connect
  • PoE+ and AC Power, Wireless Manager
  • 12 Hr Rechargeable Battery, 328' Range
  • HD Mode: 47 Mics per 6 MHz Channel

Specs

Wireless Technology
Digital UHF
Diversity
Yes
Max Operating Range
328.1' / 100 m
Receiver Type
1x Tabletop/Rack-Mountable
Number of Audio Channels
2
Included Transmitters
2x Bodypack
Microphone Type
No Microphone Included
Included Charging Case
No

System

Wireless Technology
Digital UHF
Diversity
Yes
RF Frequency Band
470.125 to 607.875 MHz
Max Operating Range
328.1' / 100 m
Max Transmitters per Band
63
Dynamic Range
120 dB
Latency
2.1 to 3.3 ms
Encryption
AES 256
Built-In Recorder
No
Timecode Support
No
Mobile App Compatible
No

Receiver

Receiver Type
1x Tabletop/Rack-Mountable
Mounting Options
Rackmount (with Included Hardware, 1 U Half-Rack)
Antenna
2x Removable
Number of Audio Channels
2
Audio I/O
2x XLR 3-Pin Balanced Output
Network I/O
1x RJ45
USB/Lightning Connectivity
No
Frequency Response
20 Hz to 20 kHz
Display
OLED
Power Requirements
AC/DC Power Adapter

Transmitters

Included Transmitters
2x Bodypack
RF Output Power
1 / 10 / 20 mW Selectable
Antenna
Removable
Input Level
Microphone / Instrument
Audio I/O
1x Hirose cH-Style 4-Pin Female Input
Bias/Plug-In & Phantom Power
10 V Bias/Plug-In Power
No Phantom Support
USB I/O
No
Muting
Programmable Mute Switch
Auto-Level/Gain
No
Frequency Response
20 Hz to 20 kHz
Sync Method
IR
Display
OLED

Microphones

Microphone Type
No Microphone Included

Power

Transmitter Battery Type
1x Built-In Rechargeable (Replaceable)
Transmitter Battery Life
Med.:
12 Hours
Included Charging Case
No

Charging Case

AC/DC Power Adapter
Included

Physical

Environmental Resistance
No
Housing
Metal
Dimensions
Receiver:
11.3 x 8.3 x 1.7" / 288.2 x 210 x 42.5 mm
Transmitter:
3.1 x 2.2 x 0.9" / 80 x 56 x 24 mm
Weight
Transmitter:
6.1 oz / 172 g (with Battery)

What's Included

  • Audio-Technica D50 2-Person Digital Wireless Bodypack Audio System with No Mics (DF2: 470 to 608 MHz)
  • Limited 2-Year Manufacturer Warranty
