Audio-Technica ATW-D50-DRX-BLH - 2-Channel Body-Pack and Handheld System with Lavalier Mic

Audio-Technica ATW-D50-DRX-BLH - 2-Channel Body-Pack and Handheld System with Lavalier Mic

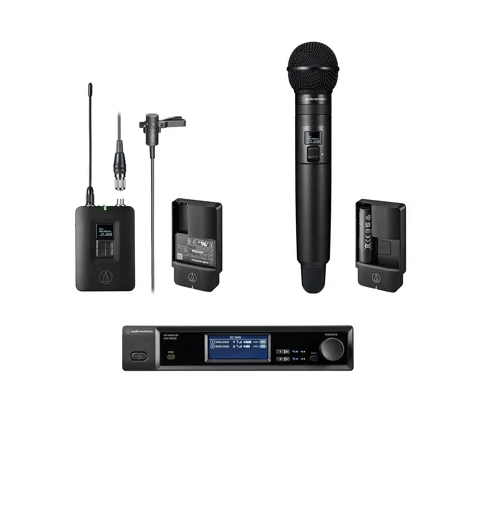

This D50 2-channel body-pack system features the Audio-Technica LINK-enabled 2-channel receiver, an ATW-DT3202/C510 handheld transmitter, and an ATW-DT3201 compact body-pack transmitter with an AT831cH wireless clip-on lavalier mic.

The half-rack receiver operates in one of two switchable RF modes: normal mode (Antenna Combining Diversity) or robust mode (MRC True Diversity) for greater RF stability. Up to four receivers can be linked and operated without antenna distribution, requiring only a single pair of antennas. Plus, the system's HD (high-density) mode gives users the option of expanding the number of usable frequencies from the standard 17 within a 6 MHz TV channel block to 47 frequencies in HD - a feature that can be especially useful in the congested RF environments of large cities.

The receiver comes with an AC adapter, but can also be powered by PoE+, either exclusively or as a backup power source for the AC.

The ATW-DT3201 is a compact body-pack transmitter is equipped with a cH-style screw-down 4-pin input connector for secure connection with compatible lavalier mics, headworn mics, and cables. External control buttons and an OLED status display make the transmitter easy to use, and a special SideTrack function allows switching between two outputs.

The transmitter is powered by a custom-designed lithium-ion battery, providing best-in-class battery life. The battery can be charged in the transmitter, using the ATW-CHG6 two-bay charging station (sold separately), or can be removed from the transmitter and charged separately in the ATW-CHGA6 battery charger.

- D50 2-Channel Receiver -
The ATW-DR3220LK is an Audio-Technica LINK-enabled 2-channel receiver for the D50 digital UHF wireless system. This half-rack receiver operates in one of two switchable RF modes: normal mode (Antenna Combining Diversity) or robust mode (MRC True Diversity) for greater RF stability. Up to four receivers can be linked and operated without antenna distribution, requiring only a single pair of antennas. Plus, the system's HD (high-density) mode gives users the option of expanding the number of usable frequencies from the standard 17 within a 6 MHz TV channel block to 47 frequencies in HD - a feature that can be especially useful in the congested RF environments of large cities.


- D50 Bodypack Transmitter -
The ATW-DT3201 is a compact body-pack transmitter for use with the D50 digital UHF wireless system. The transmitter is equipped with a cH-style screw-down 4-pin input connector for secure connection with compatible lavalier mics, headworn mics, and cables. External control buttons and an OLED status display make the transmitter easy to use, and a special SideTrack function allows users to switch audio to a second output - providing discrete live communications with fellow performers or audio engineers.

- D50 Handheld Transmitter -
The handheld transmitter comes equipped with Audio-Technica's ATW-C510 cardioid dynamic capsule, a workhorse trusted by professionals to capture every nuance of the human voice. The transmitter also works with a wide variety of additional capsules, including A-T's legendary Artist Elite ATW-C4100 cardioid dynamic, ATW-C6100 hypercardioid dynamic, ATW-C3300 and ATW-C5400 cardioid condensers as well as the ATW-C710 cardioid condenser. External control buttons and an OLED status display make the transmitter easy to use, and a special SideTrack function allows users to switch audio to a second output providing discrete live communications with fellow performers or audio engineers.

The transmitter is powered by a custom-designed lithium-ion battery, providing best-in-class battery life. The battery can be charged in the transmitter, using the ATW-CHG6 two-bay charging station (sold separately), or can be removed from the transmitter and charged separately in the ATW-CHGA6 battery charger.


- AT831 Lavalier Microphone -
This clip-on lavalier mic provides crisp, full-sounding voice pickup. It also excels as an instrument mic, especially for pickup of acoustic guitar. The mic is ideal for higher SPL applications, and offers excellent gain before feedback and suppression of background noise. Includes windscreen and clothing clip.

55" (1.4 m) permanently attached cable terminated with a screw-down 4-pin connector for use with Audio-Technica cH-style body-pack wireless transmitters; no power module.

- ATW-CHGA6 Battery Charger -
The ATW-CHGA6 battery charger is used to charge the lithium-ion batteries that power D50 wireless system transmitters. The charger can be inserted into an ATW-CHG6 charging station (sold separately) or be powered separately by a USB-C cable.

Features

• Experience crystal-clear audio with this 2-channel digital UHF wireless system, perfect for professional presentations.
• Enjoy versatile performance with included handheld and lavalier microphones, ideal for interviews and stage use.
• Benefit from extended operation with long-lasting rechargeable Li-ion batteries, ensuring reliable power for events.
• Achieve seamless integration into your existing setup with the LINK-enabled rackmount receiver, a great value.
• Capture every nuance with the high-quality condenser lavalier microphone, offering superior sound for content creators.
• Trust in the durable build and trusted Audio-Technica brand for consistent, high-performance wireless audio.
• D50 2-Channel Receiver
• Audio-Technica LINK-enabled, 2-channel, half-rack receiver
• Full tuning bandwidth of up to 244 MHz, depending on region (up to 138 MHz in the U.S.), in the broadcast range enables flexible channel planning in complex RF environments
• Switchable between normal mode (Antenna Combining Diversity) and robust mode (MRC True Diversity), which offers superior RF stability
• User can switch from Standard mode (17 frequencies per 6 MHz TV channel) to HD mode (47 frequencies per 6 MHz TV channel) when operating in congested urban RF environments
• Onboard DSP offers high-pass filter, 4-band EQ, and compressor settings for each channel
• Supports AES256 encryption for superior security
• Equipped with a network port for monitoring and device configuration via Wireless Manager
• Receiver can be powered by included AC adapter or PoE+; PoE+ also provides redundancy to keep the receiver powered if AC drops out
• Receiver can be set to mixed output in situations where input channels are limited
• Spectrum analysis (accessible via receiver's front-panel display and/or Wireless Manager software) and IR sync functionality make setup easy
• Wireless Manager's system management tools include those to configure detailed EQ and COMP settings, and an advanced walk test for visual confirmation of multiple RF conditions
• Multipoint receiver function allows a transmitter to be detected by multiple D50 networked receivers, with Wireless Manager software automatically switching to the receiver that has the best signal
• Included short and long rack ears can be used to mount one receiver in a half-rack space and two long ears can be combined as a joining plate to mount two receivers in a full space
• TAA-compliant (U.S.); Radio Equipment Directive (RED) cybersecurity-compliant (EU)
• Firmware updates are performed in Wireless Manager
• D50 Bodypack Transmitter
• Rugged cH-style connector provides secure connection to lavalier mics, headworn mics, and cables with a cH-style screw-down 4-pin connector
• Features external control buttons, mute switch, OLED display, and a SideTrack function that enables switching between multiple outputs
• Powered by a custom-designed lithium-ion battery for best-in-class battery life and convenient charging in the or ATW-CHGA6 battery charger
• Seven-color LED, along with seven physical color rings, make it easy to color code each channel
• IR sync functionality enables easy synchronization with receiver
• Best-in-class, all-metal construction
• D50 Handheld Transmitter
• Handheld transmitter for the D50 digital UHF wireless system
• Equipped with an ATW-C510 cardioid dynamic capsule
• Compatible with a wide variety of additional capsules, including A-T's Artist Elite ATW-C4100, ATW-C6100, ATW-C3300, ATW-C5400 and ATW-C710
• Features external control buttons, programmable mute switch, OLED display, and a SideTrack function that enables switching between multiple outputs
• Powered by a custom-designed lithium-ion battery for best-in-class battery life and convenient charging in the ATW-CHG6 two-bay charging station or ATW-CHGA6 battery charger
• Seven-color LED, along with seven physical color rings, make it easy to color code each channel
• IR sync functionality enables easy synchronization with receiver
• Best-in-class, all-metal construction
• AT831 Lavalier Microphone
• Provides crisp, full-sounding voice and instrument pickup
• Excellent gain before feedback and suppression of background noise
• ATW-CHGA6 Battery Charger
• Charger for lithium-ion batteries used in D50 wireless system transmitters

What's included

• ATW-DT3201 Bodypack Transmitter
• Audio-Technica D50 ATW-DT3202 Digital Wireless Handheld Tx with C510 Capsule
• Audio-Technica D50 ATW-DR3220LK 2-Ch Digital Wireless LINK-Enabled Rackmount Rx
• AT831cH Wireless Clip-On Lavalier Microphone
• 2x ATW-CHGA6 Battery Charger
• Audio-Technica LI-220 Rechargeable Li-ion Battery for D50 Bodypack Transmitter
• Audio-Technica LI-320 Rechargeable Li-ion Battery for D50 Handheld Transmitter
• ATW-TI10 Color Ring Indicator Set
• Pouch
• Windscreen
• Clothing Clip
• Audio-Technica 2 Year Limited Warranty
