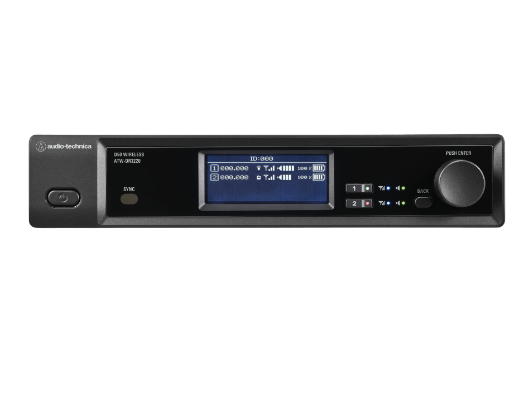

Audio Technica ATW-DR3220LKDF2 -D50 2CH RX -2-Channel LINK-Enabled Receiver

Audio Technica ATW-DR3220LKDF2 -D50 2CH RX -2-Channel LINK-Enabled Receiver

Audio Technica
SKU:
ATW-DR3220LKDF2
$1,099.00
$1,292.94
(You save $193.94 )
Current Stock:
Description

Audio Technica ATW-DR3220LKDF2 - D50 2CH RX - 2-Channel LINK-Enabled Receiver

The ATW-DR3220LK is an Audio-Technica LINK-enabled 2-channel receiver for the D50 digital UHF wireless system. This half-rack receiver operates in one of two switchable RF modes: normal mode (Antenna Combining Diversity) or robust mode (MRC True Diversity) for greater RF stability. Up to four receivers can be linked and operated without antenna distribution, requiring only a single pair of antennas. Plus, the system’s HD (high-density) mode gives users the option of expanding the number of usable frequencies from the standard 17 within a 6 MHz TV channel block to 47 frequencies in HD – a feature that can be especially useful in the congested RF environments of large cities.

The receiver comes with an AC adapter, but can also be powered by PoE+, either exclusively or as a backup power source for the AC.

Features

  • Audio-Technica LINK-enabled, 2-channel, half-rack receiver for the D50 digital UHF wireless system

  • Full tuning bandwidth of up to 244 MHz, depending on region (up to 138 MHz in the U.S.), in the broadcast range enables flexible channel planning in complex RF environments

  • Switchable between normal mode (Antenna Combining Diversity) and robust mode (MRC True Diversity), which offers superior RF stability

  • User can switch from Standard mode (17 frequencies per 6 MHz TV channel) to HD mode (47 frequencies per 6 MHz TV channel) when operating in congested urban RF environments

  • Onboard DSP offers high-pass filter, 4-band EQ, and compressor settings for each channel

  • Supports AES256 encryption for superior security

  • Equipped with a network port for monitoring and device configuration via Wireless Manager

  • Receiver can be powered by included AC adapter or PoE+; PoE+ also provides redundancy to keep the receiver powered if AC drops out

  • Receiver can be set to mixed output in situations where input channels are limited

  • Spectrum analysis (accessible via receiver’s front-panel display and/or Wireless Manager software) and IR sync functionality make setup easy

  • Wireless Manager’s system management tools include those to configure detailed EQ and COMP settings, and an advanced walk test for visual confirmation of multiple RF conditions

  • Multipoint receiver function allows a transmitter to be detected by multiple D50 networked receivers, with Wireless Manager software automatically switching to the receiver that has the best signal

  • Included short and long rack ears can be used to mount one receiver in a half-rack space and two long ears can be combined as a joining plate to mount two receivers in a full space

  • TAA-compliant (U.S.); Radio Equipment Directive (RED) cybersecurity-compliant (EU)

  • Firmware updates are performed in Wireless Manager

  • Includes: ATW-DR3220LK receiver, short and long rack ear kit, power supply, antennas, front-mount antenna kit
  •

Specs

Operating Frequencies DF2: 470.125 to 607.875 MHz
Modulation Mode Standard: 8-PSK
HD mode: 16QAM
Occupied Bandwidth Standard: 192 kHz
HD mode: 96 kHz
Frequency Response Standard: 20 to 20,000 Hz
HD mode: 20 to 20,000 Hz
Depending on attached microphone element.
Operating Range 100 m (328′)
Open range environment with no interfering signals.
Dynamic Range ATW-DT3201 (Mic input): 120 dB, A-weighted, typical
ATW-DT3201 (Inst. input): 109 dB, A-weighted, typical
ATW-DT3202: 120 dB, A-weighted, typical
ATW-DT3207: 120 dB, A-weighted, typical
Total Harmonic Distortion 0.1% or less (at 1 kHz, -20 dBFS)
Maximum Simultaneous Use (recommended) Standard: 17 channels / 6 MHz
Results may vary depending on the radio environment and usage conditions.
Delay Standard: 2.1 ms typ.
HD mode: 3.3 ms typ.
Audio Sampling Rate Standard: 48 kHz
HD mode: 48 kHz
Encryption System AES256
