Audio Technica ATW-DT3201DF2 - D50 Body-Pack TX - Body-Pack Transmitter

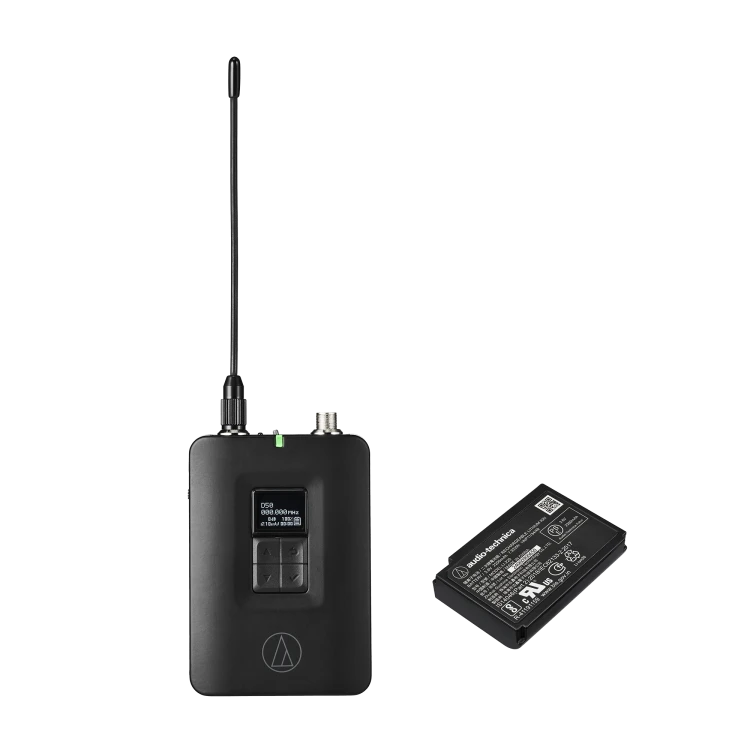

The ATW-DT3201 is a compact body-pack transmitter for use with the D50 digital UHF wireless system. The transmitter is equipped with a cH-style screw-down 4-pin input connector for secure connection with compatible lavalier mics, headworn mics, and cables. External control buttons and an OLED status display make the transmitter easy to use, and a special SideTrack function allows users to switch audio to a second output — providing discrete live communications with fellow performers or audio engineers.

The transmitter is powered by a custom-designed lithium-ion battery, providing best-in-class battery life. The battery can be charged in the transmitter, using the ATW-CHG6 two-bay charging station, or can be removed from the transmitter and charged separately in the ATW-CHGA6 battery charger (ATW-CHG6 and ATW-CHGA6 sold separately).

Features

  • Compact body-pack transmitter for the D50 digital UHF wireless system

  • Rugged cH-style connector provides secure connection to lavalier mics, headworn mics, and cables with a cH-style screw-down 4-pin connector

  • Features external control buttons, mute switch, OLED display, and a SideTrack function that enables switching between multiple outputs

  • Powered by a custom-designed lithium-ion battery for best-in-class battery life and convenient charging in the ATW-CHG6 two-bay charging station or ATW-CHGA6 battery charger (both sold separately)

  • Seven-colour LED, along with seven physical colour rings, make it easy to colour code each channel

  • IR sync functionality enables easy synchronisation with receiver

  • Best-in-class, all-metal construction

  • Includes: ATW-DT3201 Body-pack transmitter, LI-220 rechargeable lithium-ion battery, ATW-TI10 colour ring indicator kit

Specs

Operating Frequencies DF2: 470.125 to 607.875 MHz DF3: 470.125 to 693.875 MHz EF3: 580.000 to 693.875 MHz
Modulation Mode Standard: 8-PSK
HD mode: 16QAM
Occupied Bandwidth Standard: 192 kHz
HD mode: 96 kHz
Frequency Response Standard: 20 to 20,000 Hz
HD mode: 20 to 20,000 Hz
Depending on attached microphone element.
Operating Range 100 m (328′)
Open range environment with no interfering signals.
Dynamic Range ATW-DT3201 (Mic input): 120 dB, A-weighted, typical
ATW-DT3201 (Inst. input): 109 dB, A-weighted, typical
ATW-DT3202: 120 dB, A-weighted, typical
ATW-DT3207: 120 dB, A-weighted, typical
Total Harmonic Distortion 0.1% or less (at 1 kHz, -20 dBFS)
Maximum Simultaneous Use (recommended) Standard: 17 channels / 6 MHz, 22 channels / 8 MHz
HD mode: 47 channels / 6 MHz, 63 channels / 8 MHz
Results may vary depending on the radio environment and usage conditions.
Delay Standard: 2.1 ms typ.
HD mode: 3.3 ms typ.
Audio Sampling Rate Standard: 48 kHz
HD mode: 48 kHz
Encryption System AES256
